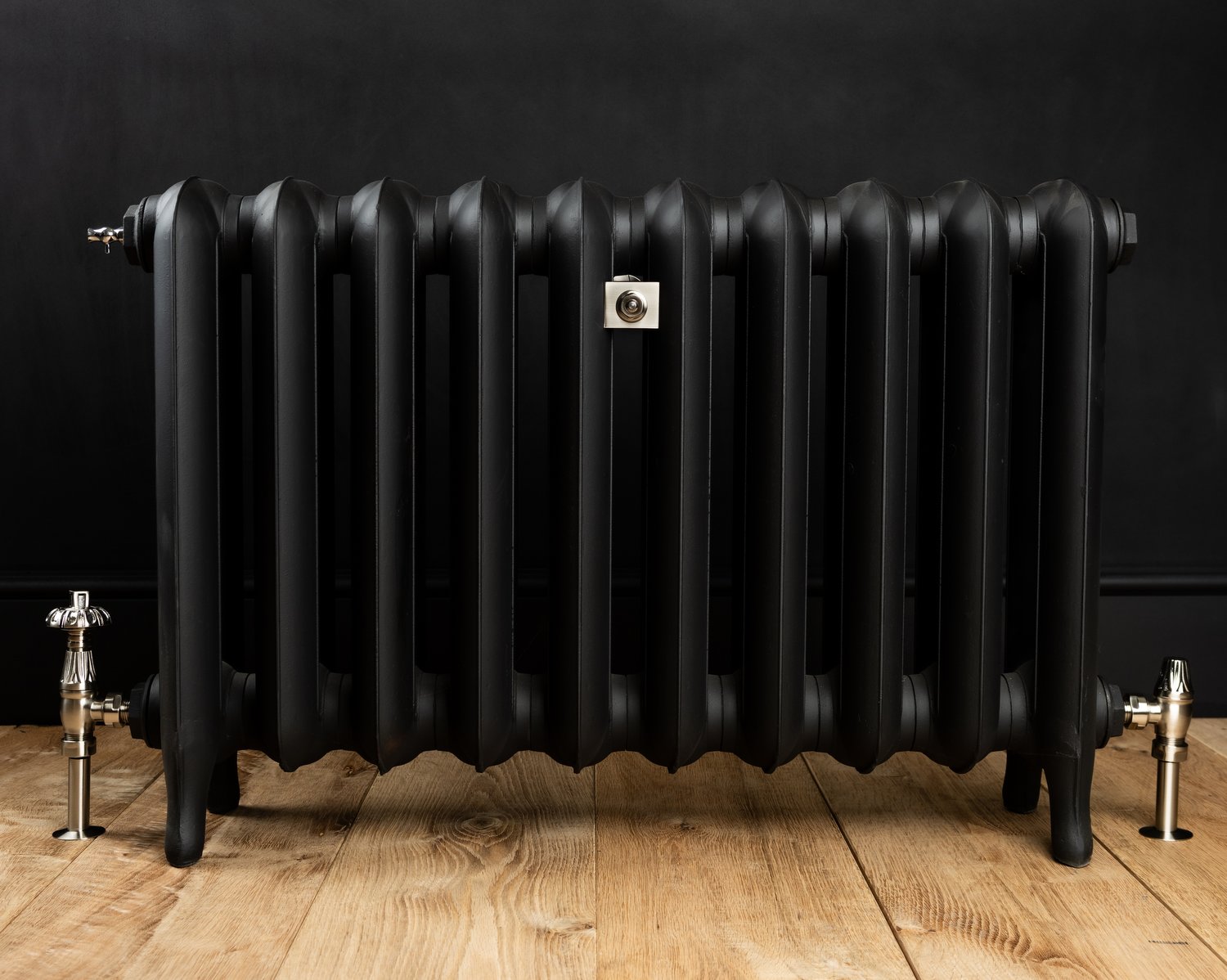

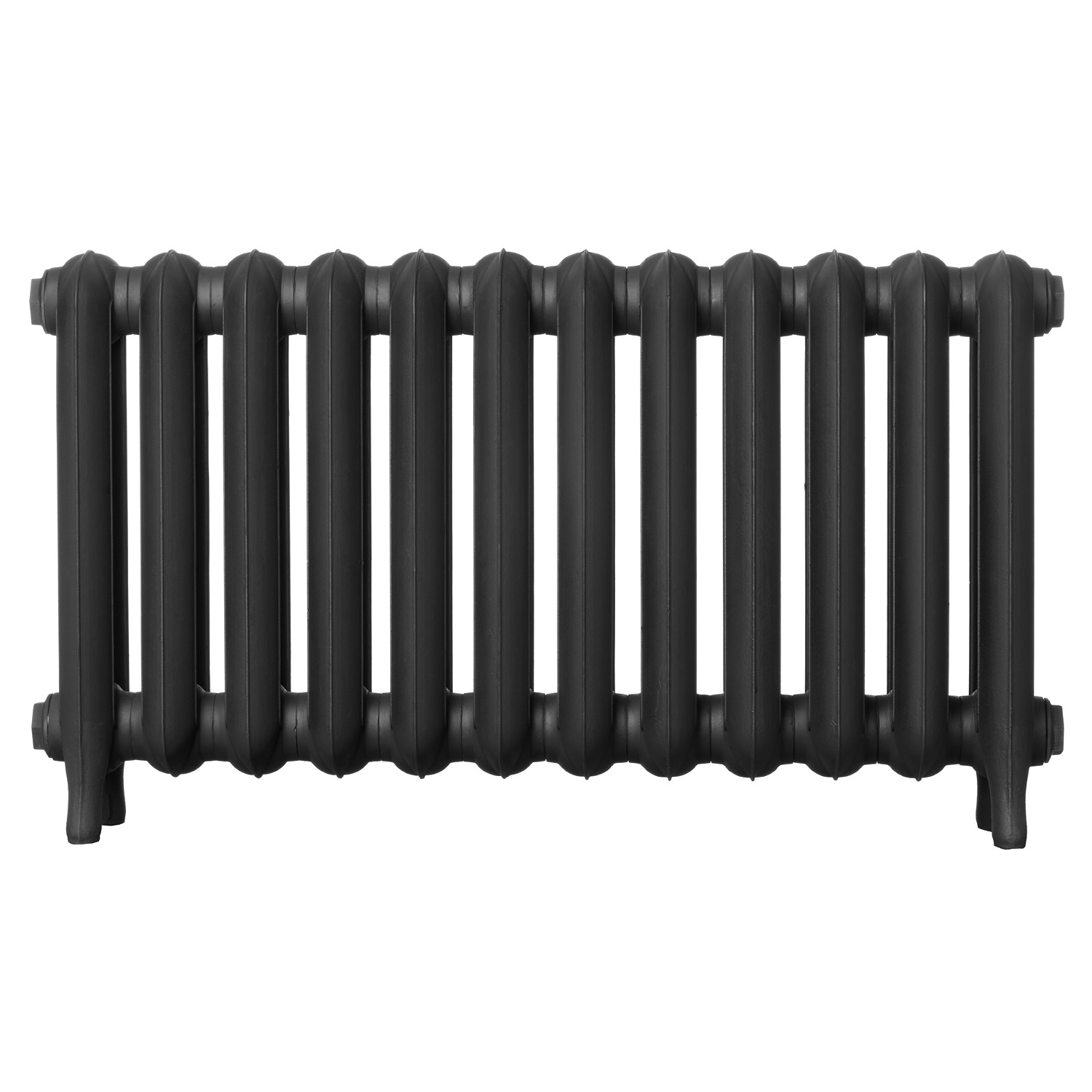

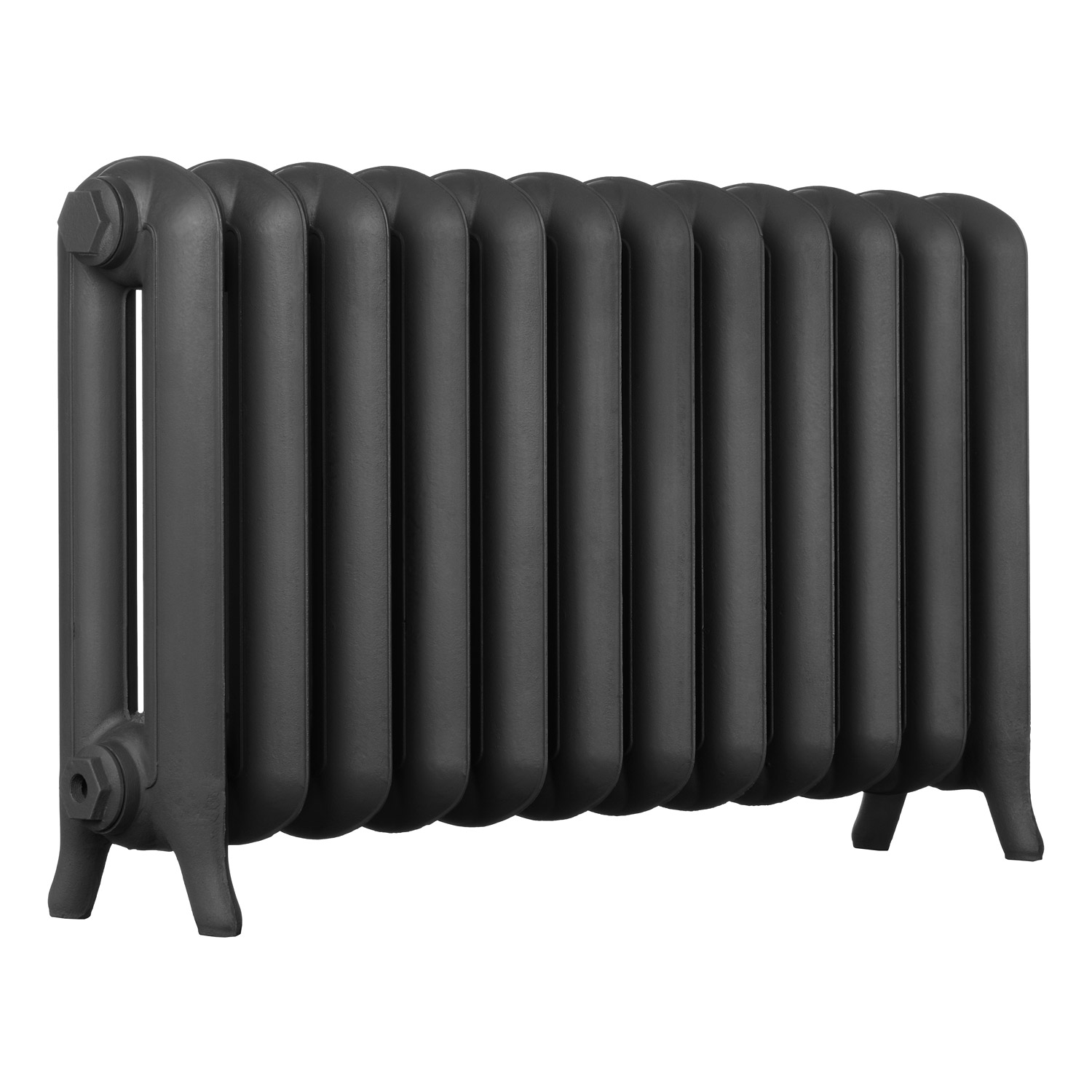

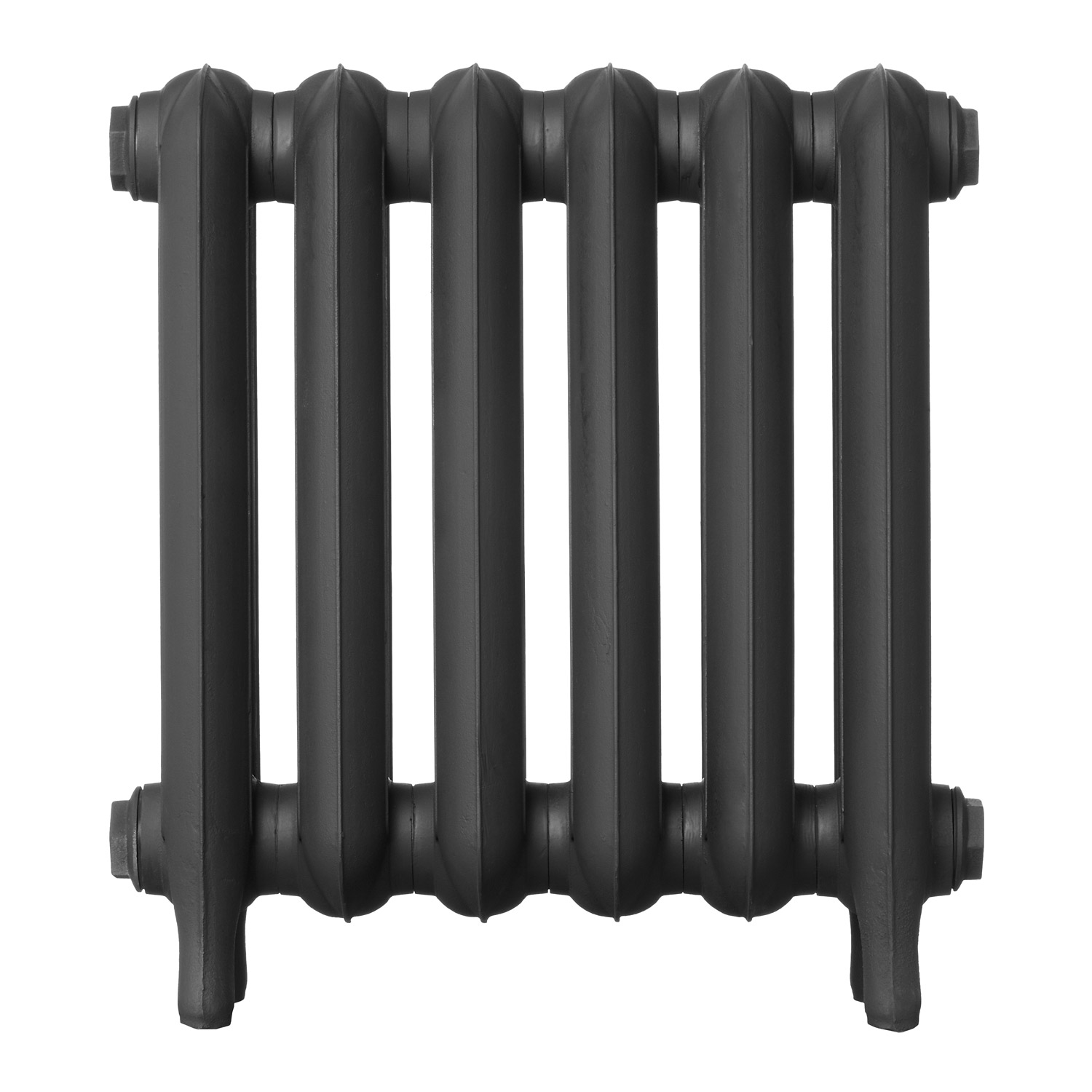

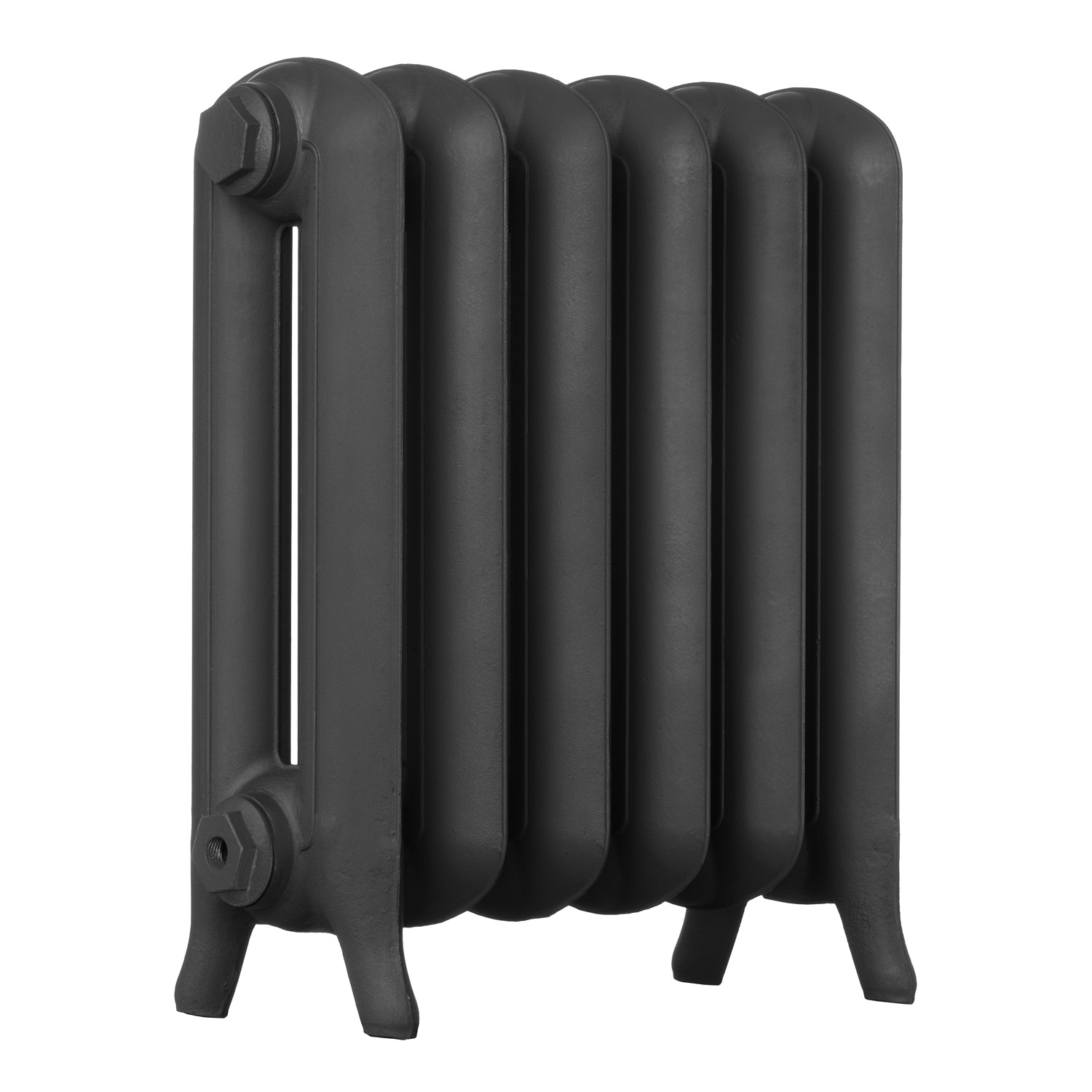

Quality Short Princess/School cast iron radiator taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years.
Height is 560mm from floor to top of radiator.
All radiators supplied fully assembled to maximum widths shown.
Distance from floor to centre of valve inlet/bush is 110mm.
Also available in a tall version.
Key PointsIn order to assist and advise our customers, it is important to note, as all our radiators are cast using traditional methods and casting moulds, there will be slight imperfections and fettling marks on our radiators and this is how we have always wanted to supply them.
This is because we are passionate about wanting to supply our cast iron radiators which have the appearance and authenticity of being many many decades old, but with the features and guarantees associated with that of a modern radiator.
An important point to note for some..... The lighter the colour of your radiator the more these slight marks will possibly be noticed due to shadowing etc and the lighter colours such as Cream White are likely to require touching up more often to keep free from accidental scuffs and knocks.
On the other hand, for obvious reasons, the darker the colour, the more forgiving and less likely these marks will be noticed and as such, these are much easier to ensure the always look in 'Tip Top' condition.
Sections | Height (mm)† | Length (mm)‡ | Depth (mm) | Content (litres) | BTU @ΔT50 | Watts @ΔT50 | kg |
---|---|---|---|---|---|---|---|
4 | 560 | 358 | 185 | 8.0 | 1176 | 345 | 29 |
6 | 560 | 512 | 185 | 12.0 | 1764 | 517 | 43 |
8 | 560 | 666 | 185 | 16.0 | 2352 | 689 | 57 |
10 | 560 | 820 | 185 | 20.0 | 2940 | 862 | 72 |
12 | 560 | 974 | 185 | 24.0 | 3528 | 1034 | 86 |
14 | 560 | 1128 | 185 | 28.0 | 4116 | 1206 | 100 |
16 | 560 | 1282 | 185 | 32.0 | 4704 | 1379 | 115 |
† Height is for foot section from floor to top of radiator.
‡ All lengths approximate and include to bush ends - please allow 4% tolerance.

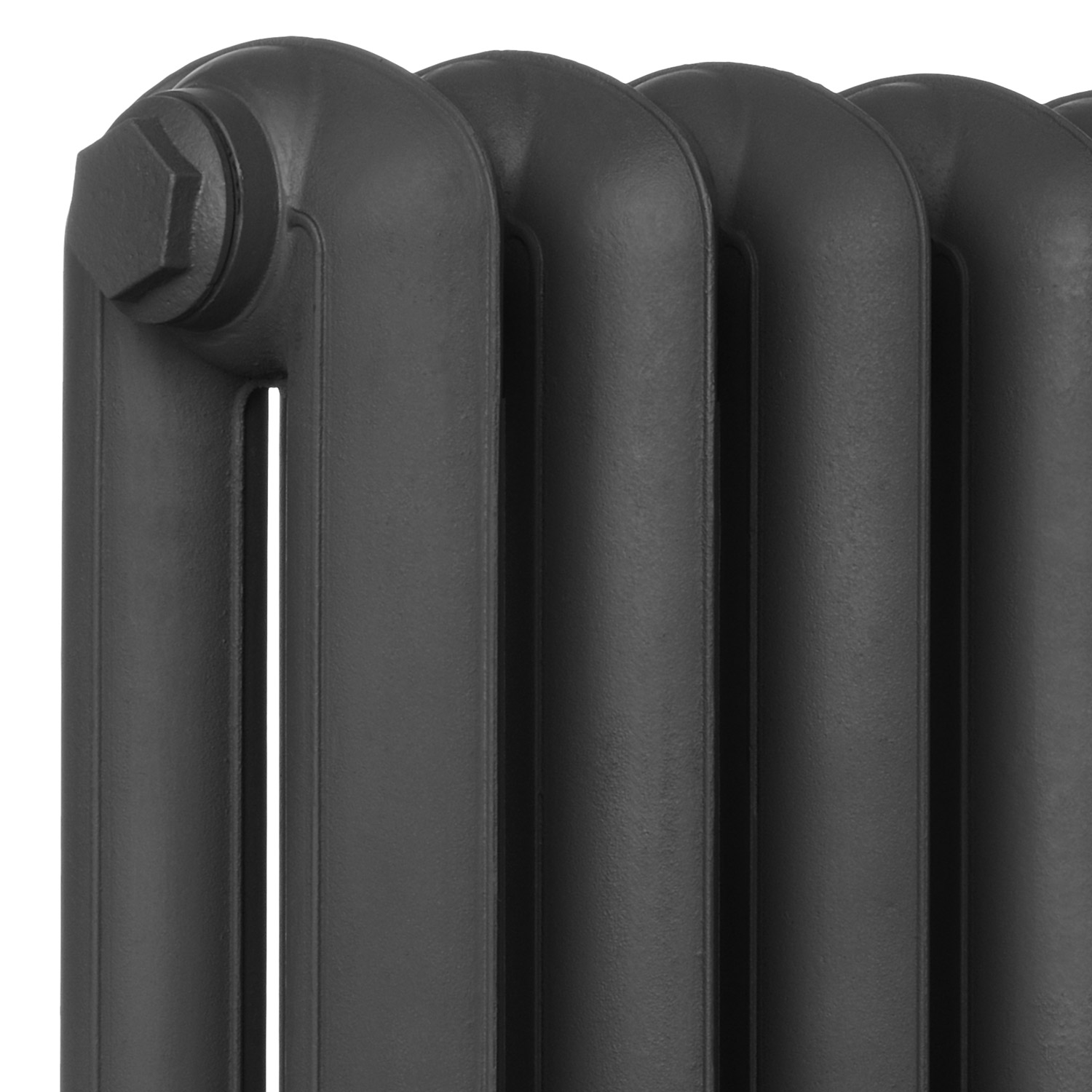

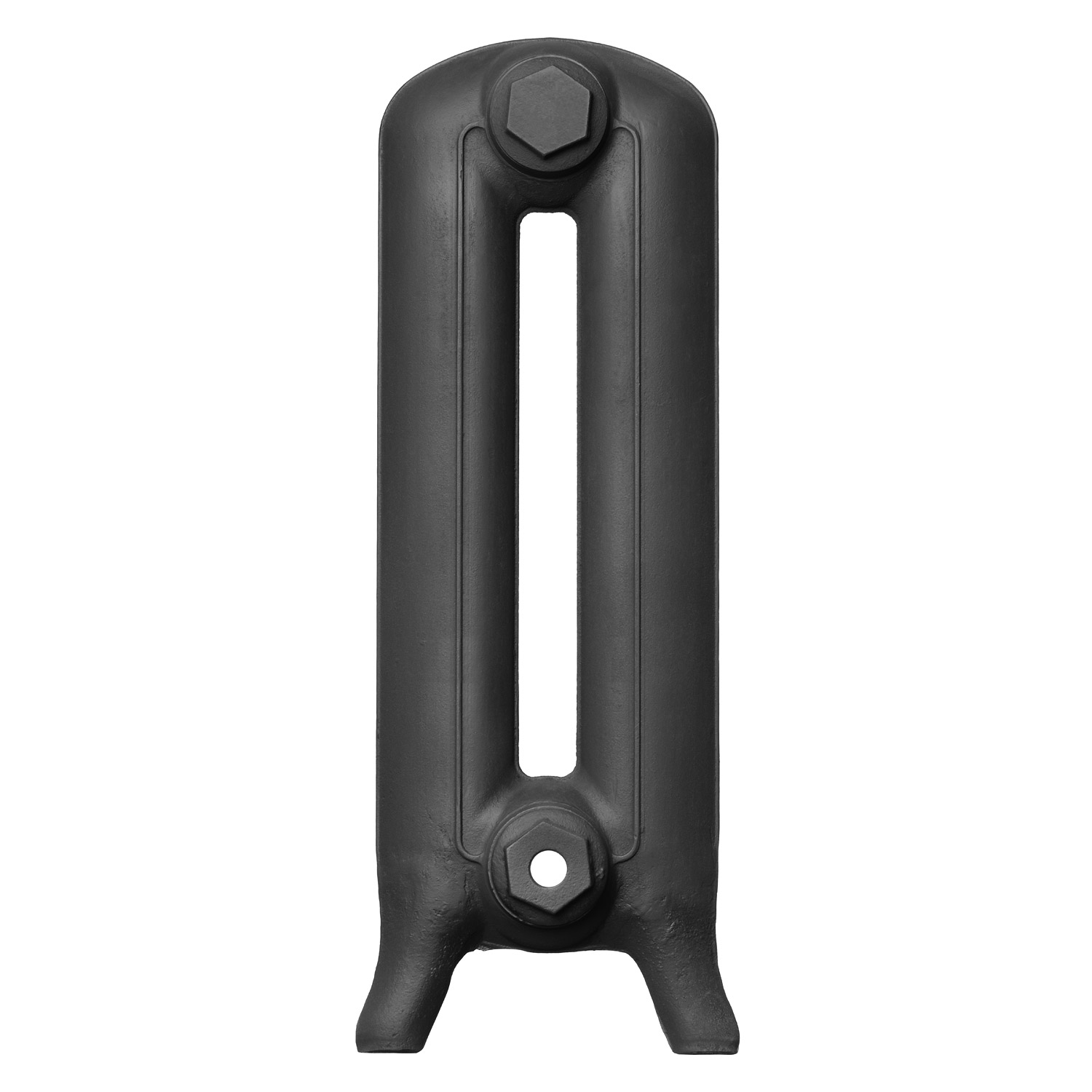

Standard finish to all cast iron radiators is a cellulose base coat.
The lead time from order placed to despatch for all radiator orders will be shown on radiator product page at checkout. Remember, this is a live anticipated lead. We will obviously ship the order sooner if complete.

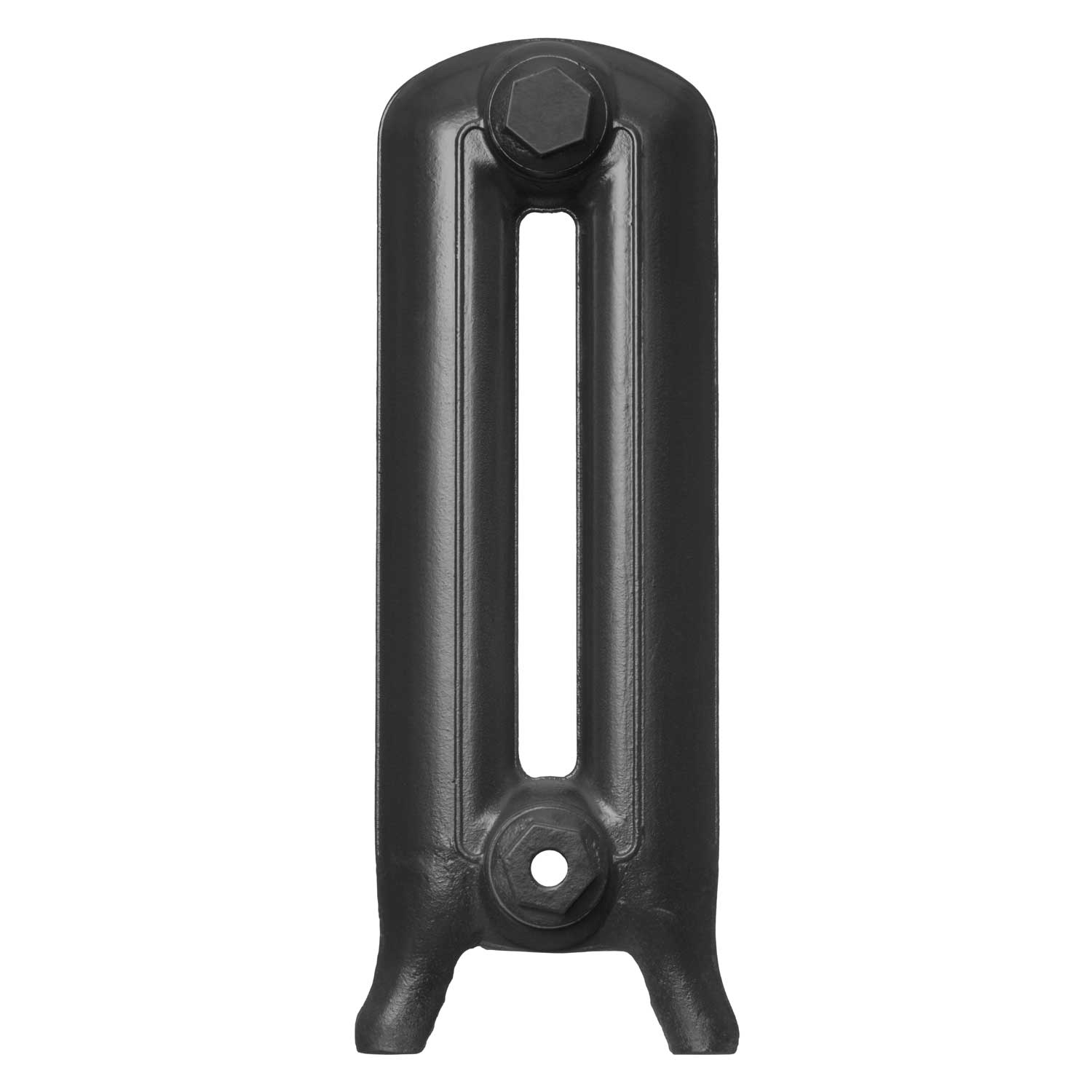

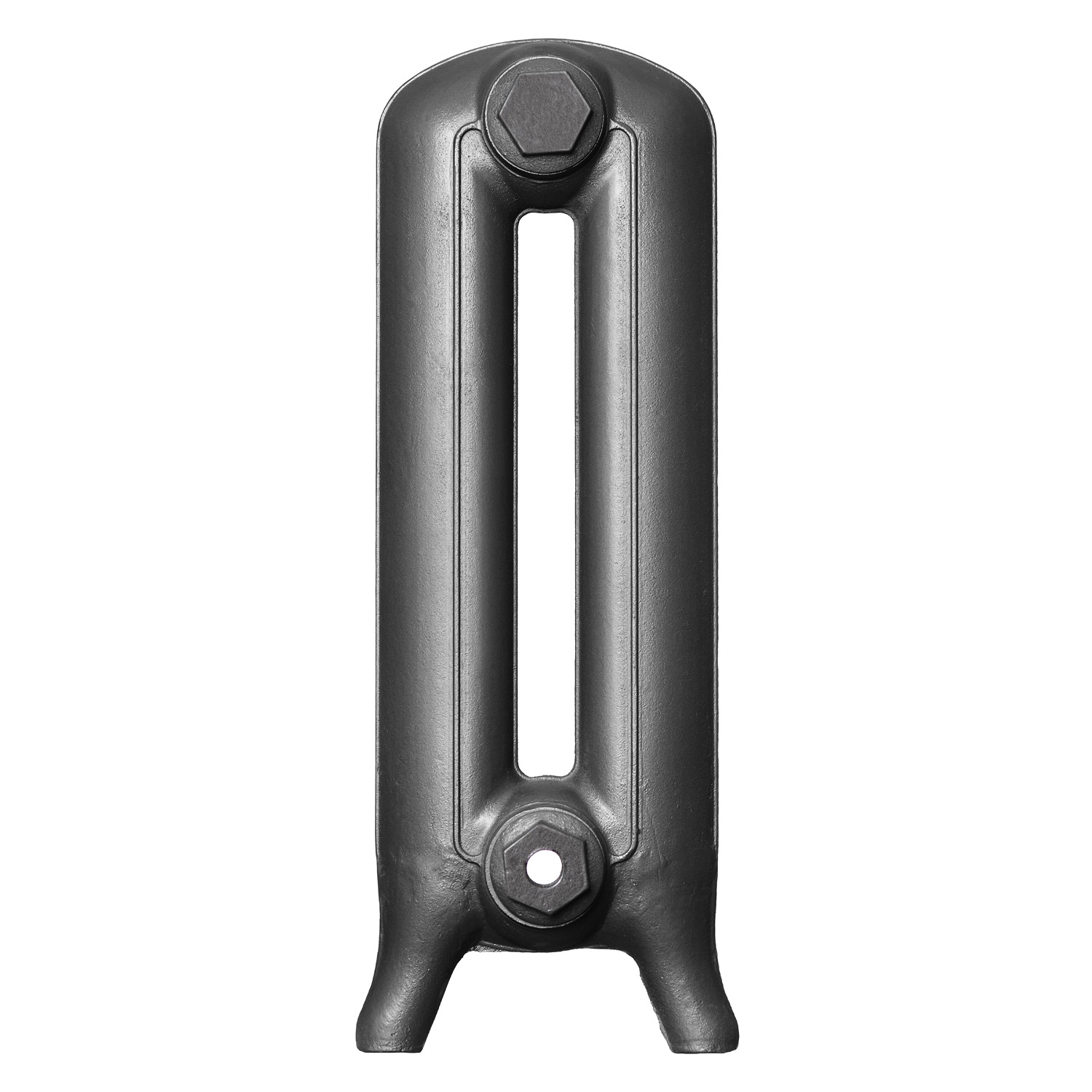

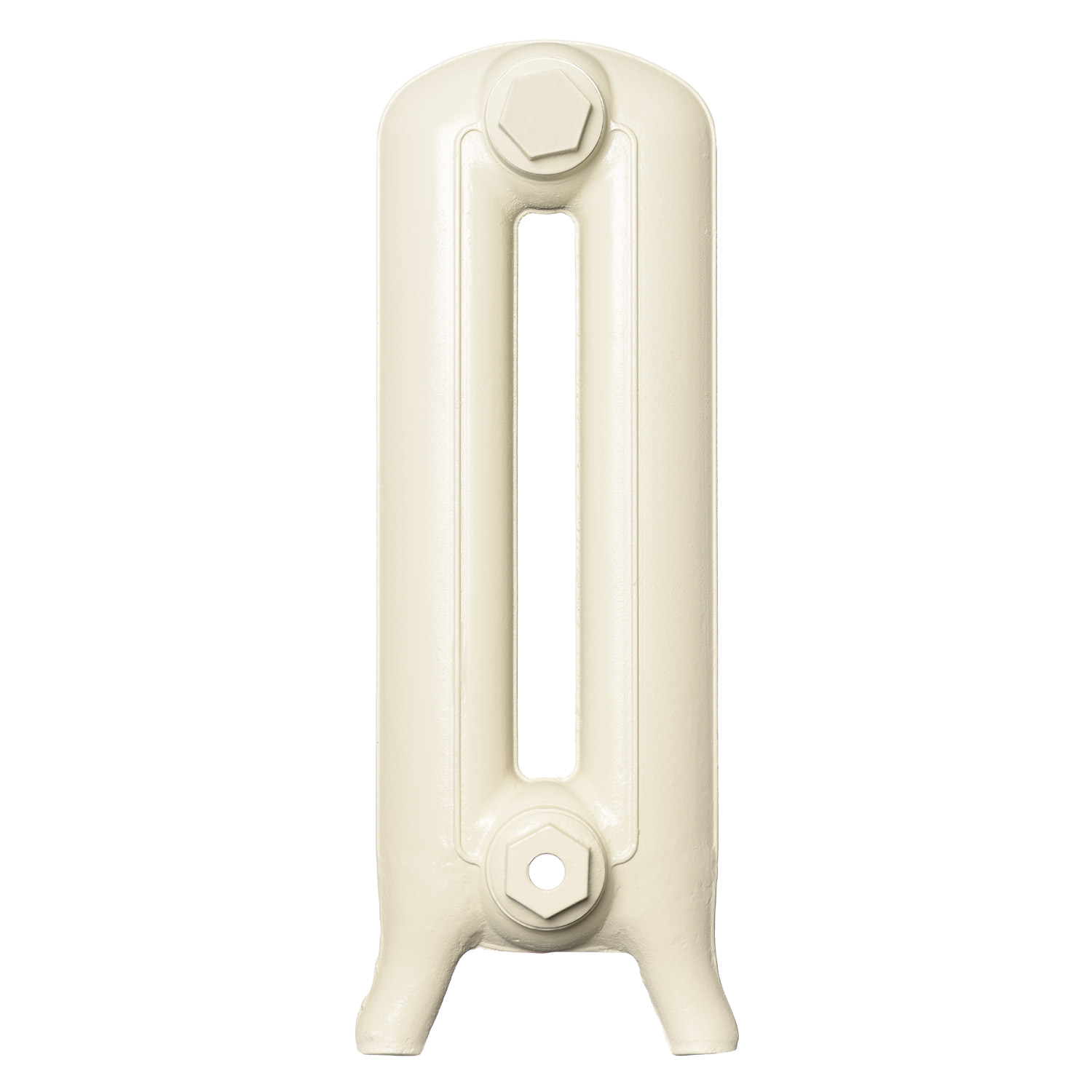

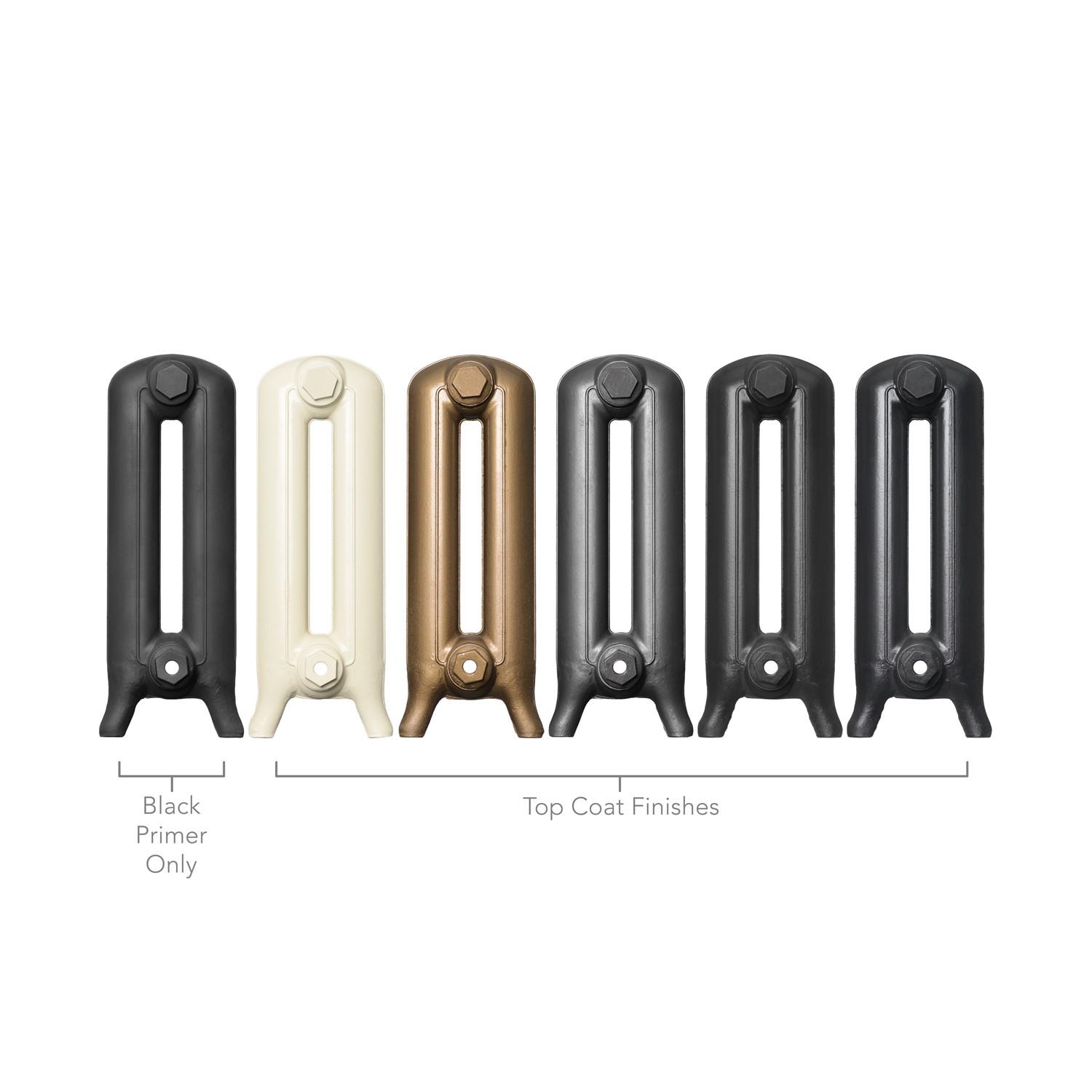

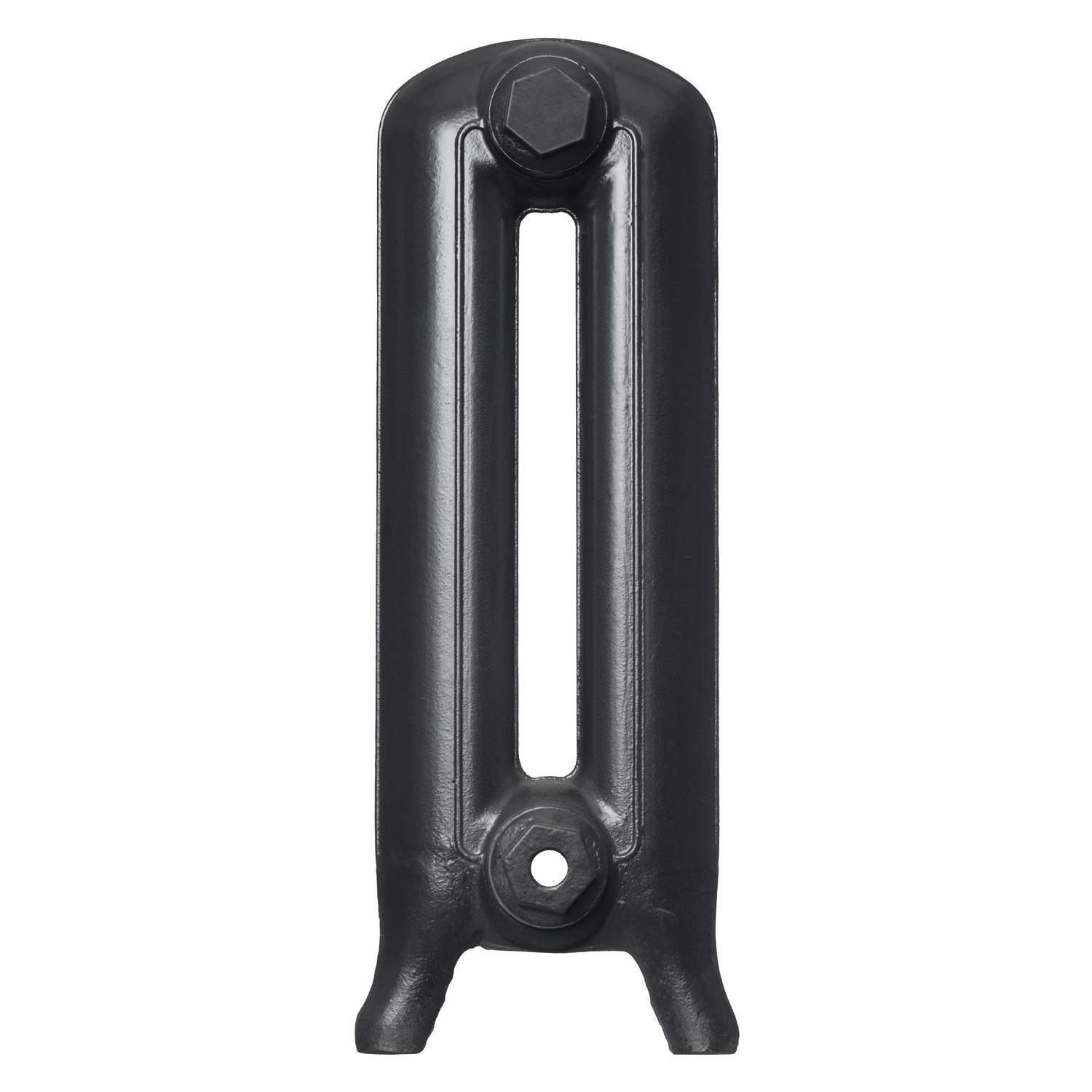

We can also supply this cast radiator ready painted/top coated in one of our authentic colours for only £6.00 + VAT per section.
The following exclusive colours are available:
As the radiators are hand assembled, all dimensions are approximate. We therefore advise that pipework should only be put in place once the radiator has been delivered.
Bush Ends
All bush ends/caps will only be hand tight to allow customers to interchange if on a gravity fed heating system & will need fitting correctly when installed with PTFE etc.
Accessories & Bleed Valves
All Fittings (Valves, Wall stays, Shrouds etc) ordered will be placed in a box located on top of the top radiator. Air Vents/bleed valves will be inside this box, within a SEALED ORANGE BAG stating 'Bleed Valves Enclosed', and stapled to the yellow A3 sheet with our Fitting Instructions. You MUST check it's content upon delivery & report any missing items immediately.
Guarantees & Conditions of Sale etc.
Guarantees & Conditions of Sale - Click Here!
Our Cast Iron Radiators are guaranteed for a period of 10 years, Valves for 2 years and all other products (excluding reclaimed products or where specified) for 1 year from the date of the Purchaser’s invoice to be free from any manufacturing defects. The Company will replace any goods found faulty due to manufacturing or workmanship defects, free of charge within this period, subject to the following exceptions:
Defective goods will be repaired or replaced subject to the following conditions:
We always advise you to wait for your cast iron radiators to be onsite before working out pipe work and pipe centres widths. This is because cast iron is not an exact product and because each radiator is hand assembled there will always be slight discrepancies as indicated on each radiator page in the lengths of same style & size radiators.
However, we appreciate that occasionally some prep work may need to be carried out prior to your order arriving onsite and that approximate pipe centre measurements may be required for first fix purposes.
In this instance, please refer to the technical drawing/specification document, saved as a PDF on each individual valve type, for the measurement from the thread on the valve tail to the centre point of the valve, and add this to the length of your radiator to work out your approximate pipe centre measurement.
For example, if fitting one of our Kenilworth Thermostatic Valve Sets, which has a measurement of 45mm from thread on the valve tail to the centre point of the valve, to a 10 section, Traditional Victorian radiator at 650mm wide, the approximate pipe centre measurement would be 740mm.
For the approximate measurement off the skirting board or wall if no skirting is used to the pipe centre we suggest half the depth of the cast iron radiator + 10mm as a minimum.
For the approximate ‘outside valve to outside valve measurement’ (the minimum measurement to be able to operate the valves freely) you should add approx. 150mm/6.0” to the length indicated for each radiator in the Specification tab, however this measurement will vary depending on the valve that is fitted - this measurement should be used if fitting the radiator and valves into an area where there may be a width restriction.
*PLEASE REMEMBER THAT THE ABOVE MEASUREMENTS SHOULD BE USED AS A GUIDE ONLY.
DELIVERY LEAD TIMES - Lead times to despatch are now shown live on the website and we will always do our utmost to keep to stated times.
All radiator pallet deliveries are made on a 7.5t Lorry (the smallest vehicle we can book) with tail lift to kerb side only or nearest hard standing and are based on a 'Book In & Signed For' All Day service (9.00 a.m. - 6.00 p.m. - Week days only).
Once the order has been booked out for despatch, you will receive status emails periodically from Mobile People Powered Logistics (Mobile PPL), our delivery partner, to confirm receipt of the order, confirmation of the pallet being scanned to a delivery vehicle (with ETA), and then confirmation of delivery completed.
Alternative ‘All Day’ dates will be available at no additional cost to suit.
Upgraded to services such as Next Day delivery, Dedicated Day a.m. or p.m., timed delivery windows and Saturday deliveries where available are available for an additional charge to be paid directly with Mobile PPL only.
RED ROUTES & RESTRICTIVE PARKING - Please note drivers are unable to park on double yellow or red lines due to the risk of a parking ticket.
ACCESS - Please inform us if there are any access restrictions at your delivery point (such as 7.5T weight restrictions or height restricted bridges).
If you require a 'Dedicated Day' (working week day) for delivery to ensure you have help to hand you must indicate this in the message box at checkout. Please note that this may delay delivery slightly. This will still be a kerb side only or nearest hard standing service. For Saturday delivery, there will be an additional charge on top of the standard delivery charge quoted if this service is available.
We must stress that a Pallet Delivery Service is always kerbside only. The drivers are not insured to assist you with any aspect of moving the goods from the kerbside. This is to remove any potential risk of personal injury or damage to your goods, or your property. We remind you that it is not in your interest to encourage a driver to assist you in any way that falls outside of his responsibility. If, in the event the driver does agree to assist you, we assume you accept full responsibility for any subsequent damage to any person, or property and by doing so you will void any right to make a subsequent Insurance claim.
Care should be taken when removing radiator(s) from the pallet on delivery. Radiators should be lifted off and NOT dragged/pulled as this will result in paintwork being damaged. When removed from the pallet, all radiators must be carried in an upright position to prevent damaged to joints.
If any items are deemed to be missing from any order, we must be contacted immediately (not longer than 2 days from receipt) via email. Failure to do so will result in additional items supplied being charged to the customer. We cannot be held responsible for any consequential costs incurred due to any shortfalls which have not been notified within the timescales above.
Prices for deliveries will be automatically calculated at checkout. Pallet Delivery Prices & Conditions - Click Here!
If you are collecting your order, please remember that this can only be done by appointment only between the hours of 9am - 4pm Monday to Friday.
You MUST ensure your vehicle is suitable to take the order safely, you are able to easily load and unload all radiators safely (remember the radiators are very heavy) and that all radiators can be supported and MUST be fully support when laid flat. We will not accept responsibility for damage caused subsequent to collection.
