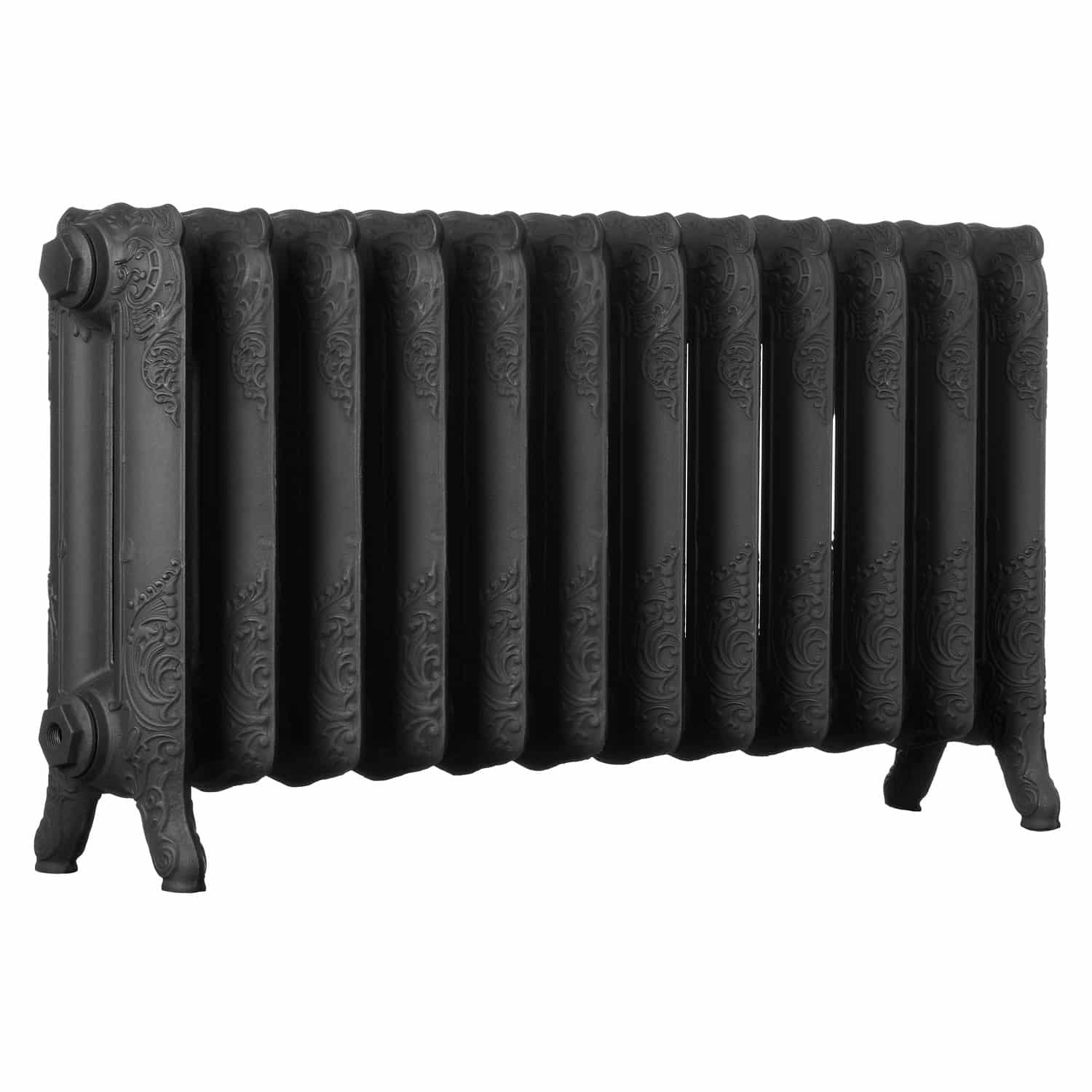

Short Ascot 2 Column 510mm Cast Iron Radiator
11 - 13 days despatch on Radiators
All other accessories 1-2 days despatch
Price Promise
We will beat any like for like quote
Rated 5 stars
300+ 5* reviews on Trustpilot
10 year guarantee
Ten year no quibbles guarantee
Built in UK
Hand Built in the UK & CE approved
Buy Direct
We’re up to 40% cheaper.
Enjoy classic Victorian design with all the efficiency of modern heating. This faithful replica of an original Victorian 2 column radiator design is the perfect choice when space is at a premium. The short design measures in at 510mm tall and 210mm deep, making it perfect for narrow hallways or rooms. The design features a classic Baroque filigree design with tag ear detailing for added impact and authenticity. Choose from a range of 5 bespoke cast iron radiator paint colours that are perfectly adapted to any interior, including matt, satin and metallic finishes in warm and cool hues. This radiator not only looks the part, it also delivers incredible efficiency by retaining heat so that your home stays warm long after the central heating is switched off.
SKU: CDC-SHT-ASCOT

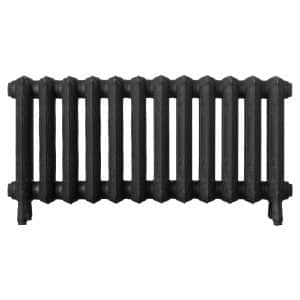

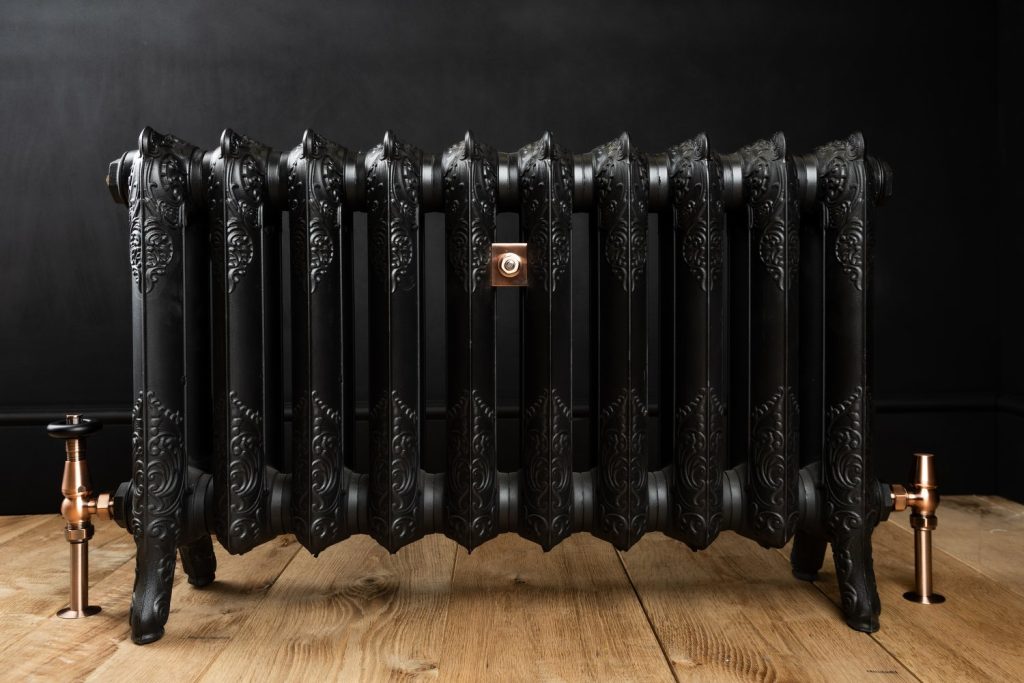

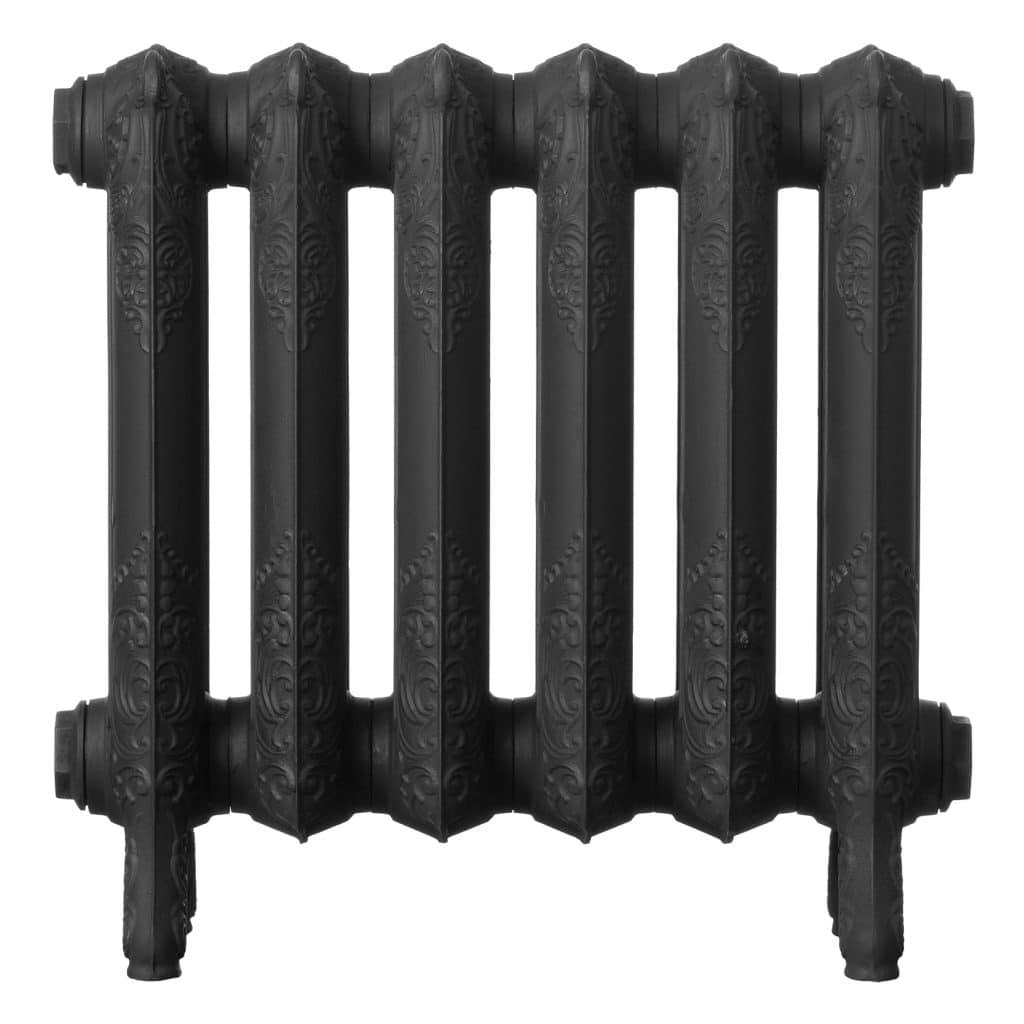

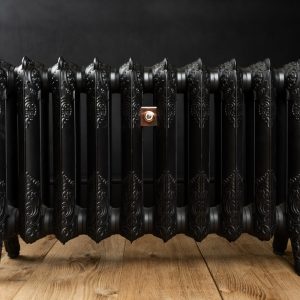

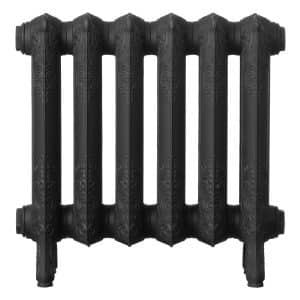

- Short ornate 2 column Victorian cast iron radiator
- Tag ear detailing and intricate design
- Slimline design is perfect for hallways and smaller spaces
- Fully assembled to maximum widths shown
- Free-standing design with integrated feet
- Includes basic brass bleed valve
- Arrives ready to install – don’t forget your valves and accessories!
- Pressure tested to 6 bar/87 psi
- ½” 15mm BSP connections for main valves

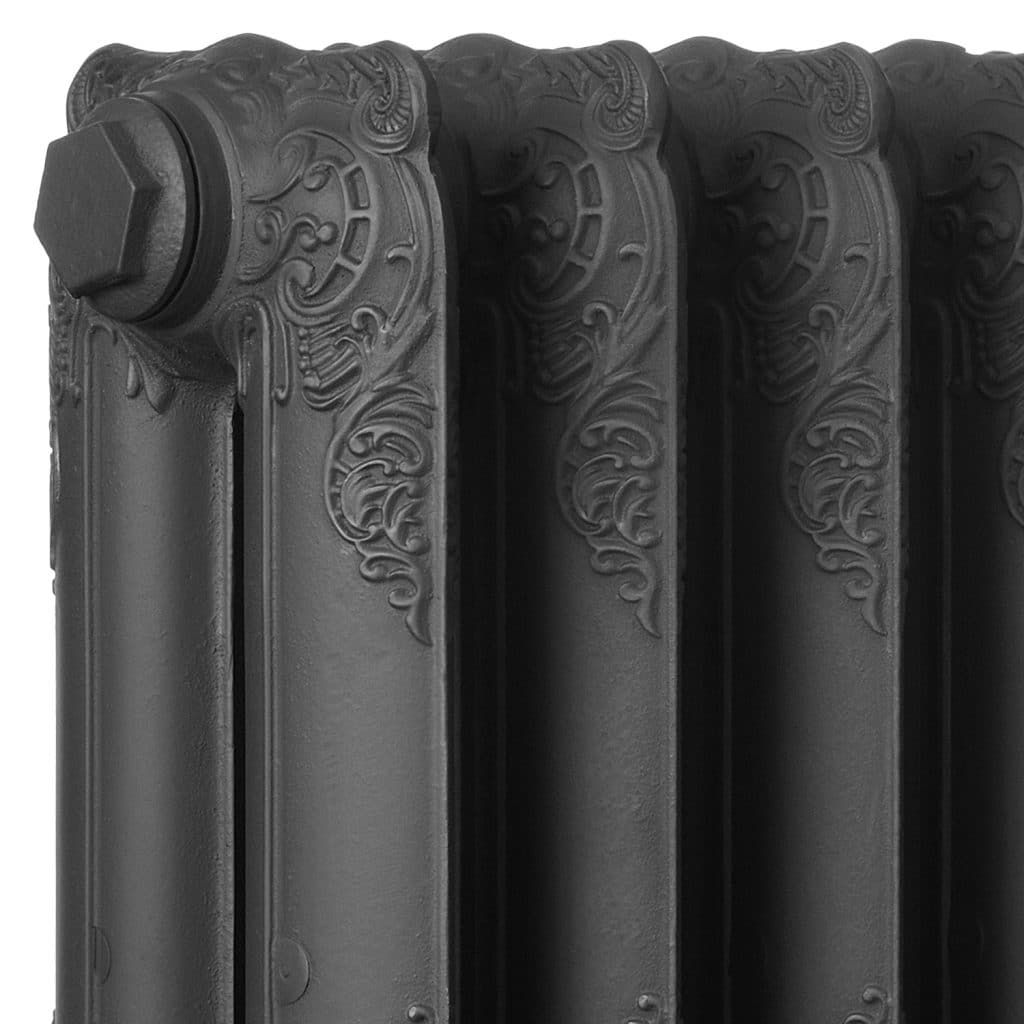

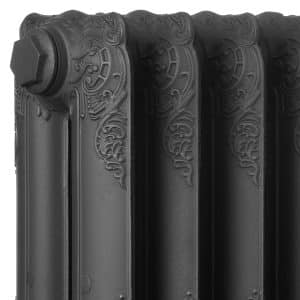

- Available base coat only or painted in one of 5 bespoke shades
- CE Certified to British Standards BS EN 442-1 & BS EN 442-2
- Heat outputs are at Delta T50 (ΔT50°C). See FAQ page for correction factors.
- Guaranteed for 10 years
| Sections | Height (mm)† |
Length (mm)‡ |
Depth (mm) |
Content (litres) |
BTU @ΔT50 |
Watts @ΔT50 |
kg |
|---|---|---|---|---|---|---|---|
| 4 | 510 | 362 | 210 | 6.8 | 1044 | 306 | 31 |

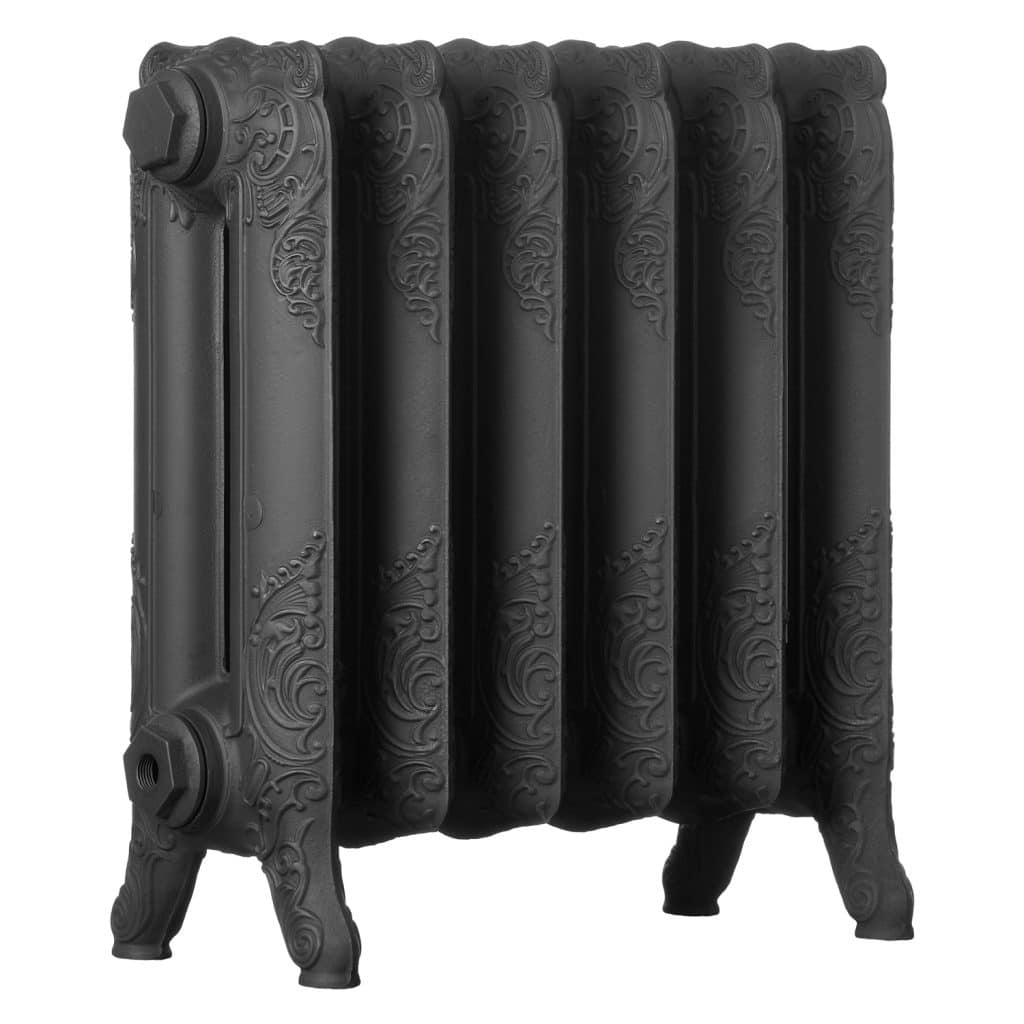

| 6 | 510 | 518 | 210 | 10.2 | 1566 | 459 | 46 |
| 8 | 510 | 674 | 210 | 13.6 | 2088 | 612 | 62 |

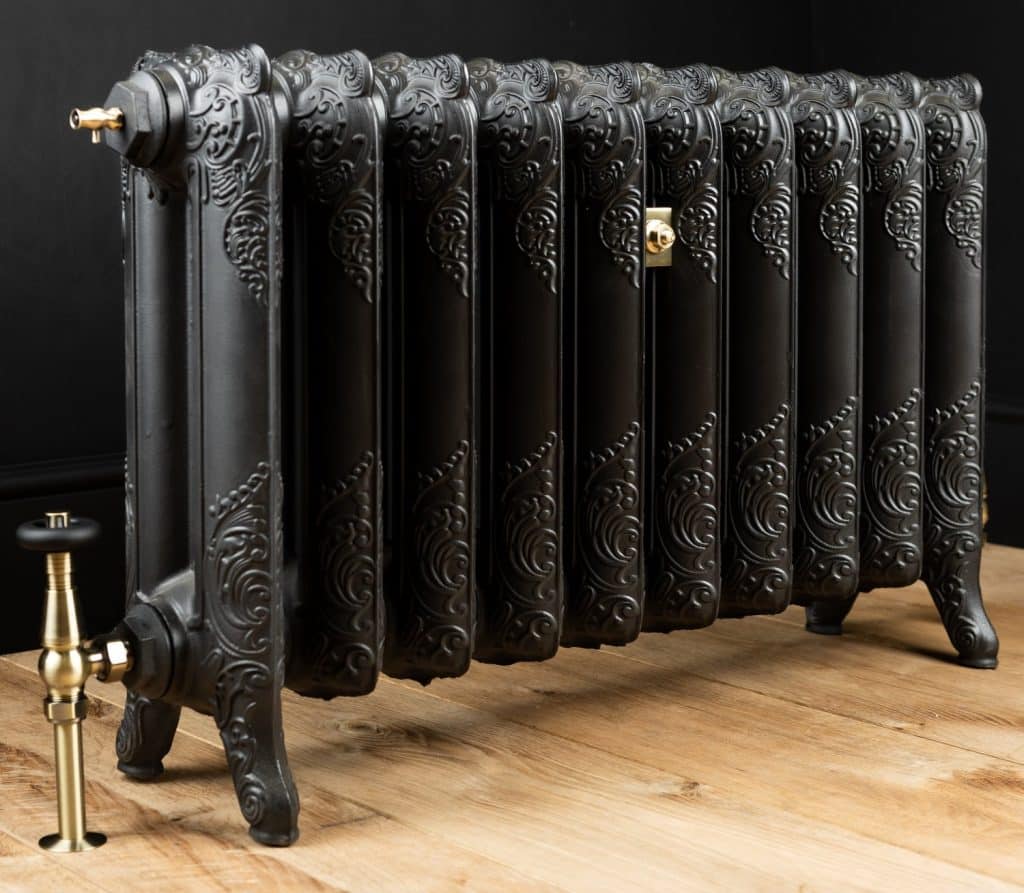

| 10 | 510 | 830 | 210 | 17.0 | 2610 | 765 | 77 |
| 12 | 510 | 986 | 210 | 20.4 | 3132 | 918 | 92 |
| 14 | 510 | 1142 | 210 | 23.8 | 3654 | 1071 | 108 |
| 16 | 510 | 1298 | 210 | 27.2 | 4176 | 1224 | 123 |
† Height is for foot section from floor to top of radiator.
‡ All lengths approximate and include to bush ends – please allow 4% tolerance.

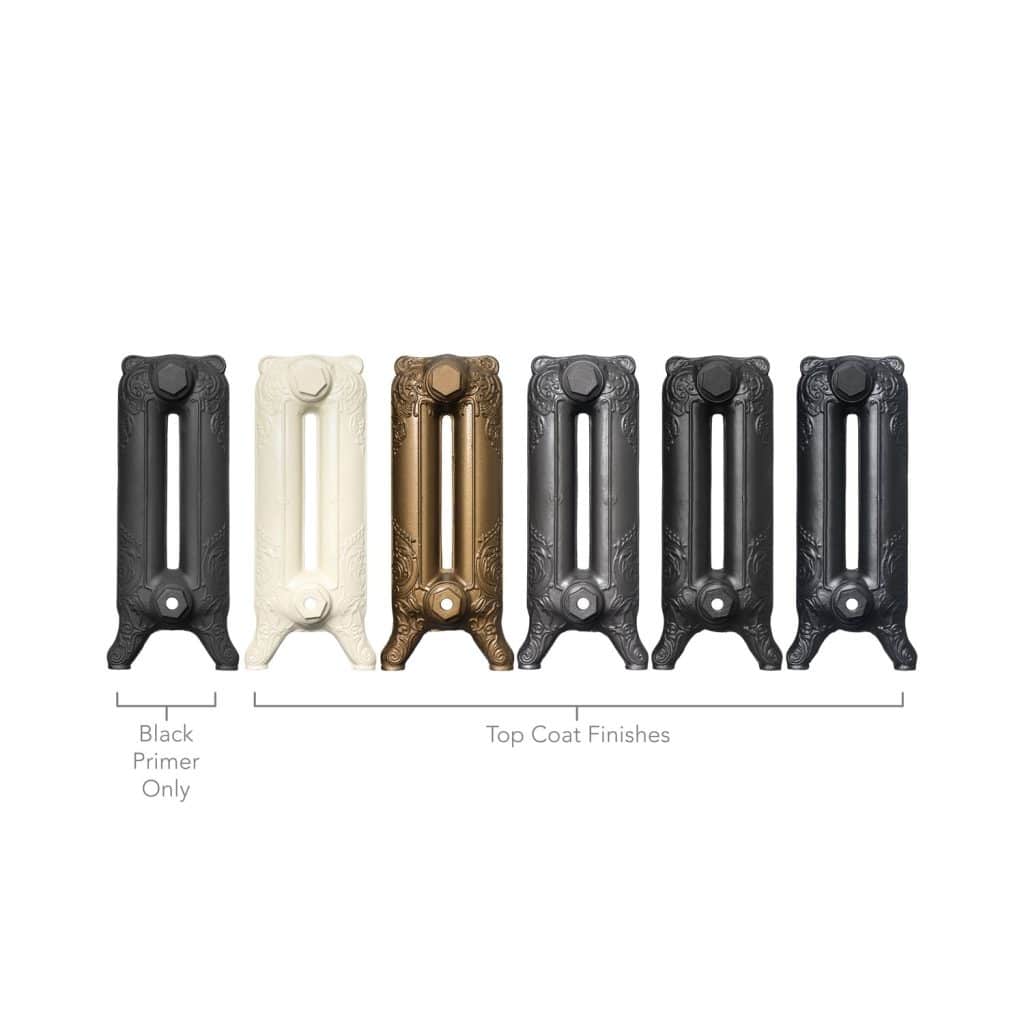

Radiators are available professionally painted in one of our stunning bespoke radiator colours, or finished with a base coat only so you can arrange your own professional painting. Our exclusive colours include:
- Matt black
- Satin black
- Gunmetal grey
- Antique bronze
- Cream white
These colours can look very different depending on the surroundings, lighting and placement in the room. If you’re unsure about the right colour for your home, you can order painted bush end samples to help you to make a choice.
Our radiators are cast using traditional methods, which means there will always be differences between the sections along with fettling marks. These are all part of the charm of cast iron radiators and highlight the authenticity of this decades old craft.
As the radiators are hand assembled, all dimensions are approximate. We therefore advise that pipework should only be put in place once the radiator has been delivered.

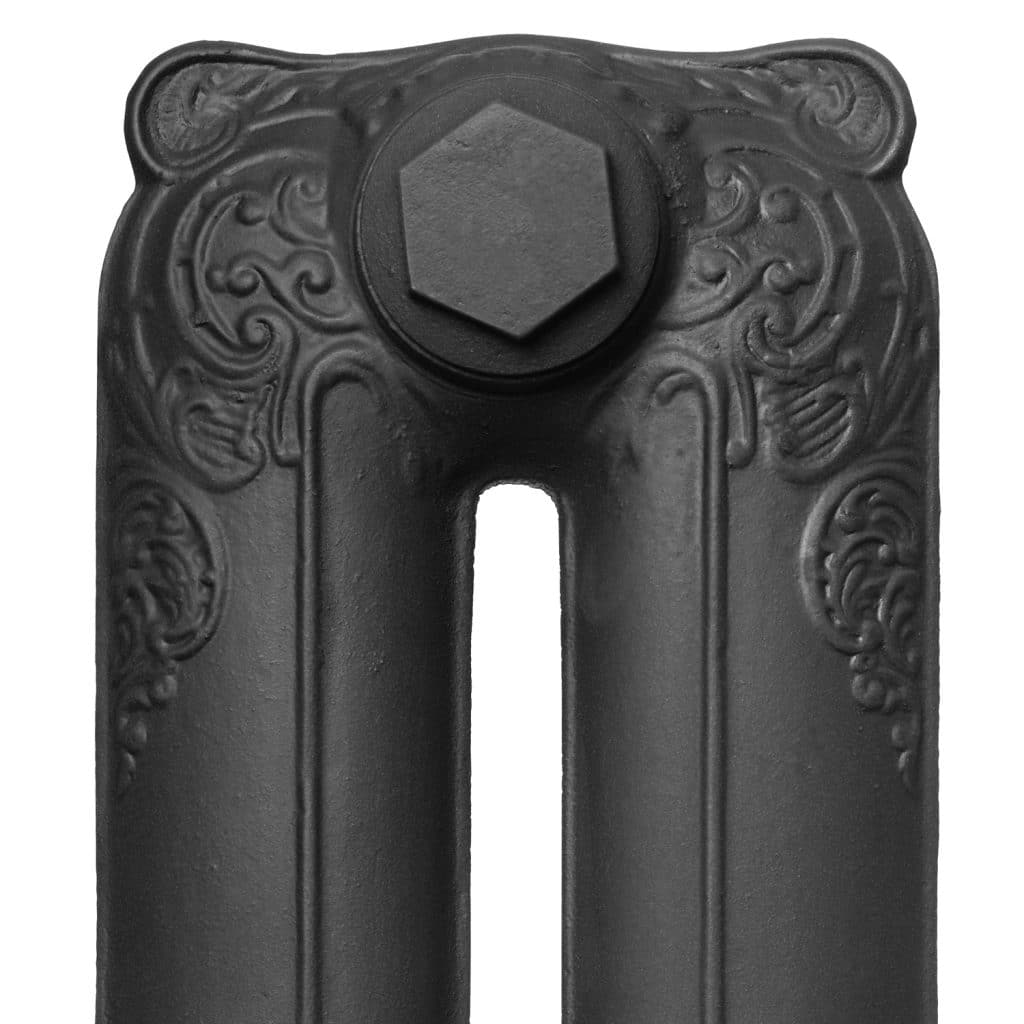

Bush Ends
All bush ends/caps will only be hand tight to allow customers to interchange if on a gravity fed heating system & will need fitting correctly when installed with PTFE etc.
Accessories & Bleed Valves
All Fittings (Valves, Wall stays, Shrouds etc) ordered will be placed in a box located on top of the top radiator. Air Vents/bleed valves will be inside this box, within a SEALED ORANGE BAG stating ‘Bleed Valves Enclosed’, and stapled to the yellow A3 sheet with our Fitting Instructions. You MUST check it’s content upon delivery & report any missing items immediately.
Guarantees & Conditions of Sale etc.
Guarantees & Conditions of Sale – Click Here!
We always recommend that you trust the installation and maintenance process to an appropriately trained and qualified professional. Head to our trade directory to find a cast iron radiator installation professional near you.
Failure to follow our radiator installation guidelines could void your warranty.
We always advise you to wait for your cast iron radiators to be onsite before working out pipe work and pipe centres widths. This is because cast iron is not an exact product and because each radiator is hand assembled there will always be slight discrepancies as indicated on each radiator page in the lengths of same style & size radiators.
However, we appreciate that occasionally some prep work may need to be carried out prior to your order arriving onsite and that approximate pipe centre measurements may be required for first fix purposes.
In this instance, please refer to the technical drawing/specification document, saved as a PDF on each individual valve type, for the measurement from the thread on the valve tail to the centre point of the valve, and add this to the length of your radiator to work out your approximate pipe centre measurement.
For example, if fitting one of our Kenilworth Thermostatic Valve Sets, which has a measurement of 45mm from thread on the valve tail to the centre point of the valve, to a 10 section, Traditional Victorian radiator at 650mm wide, the approximate pipe centre measurement would be 740mm.
For the approximate measurement off the skirting board or wall if no skirting is used to the pipe centre we suggest half the depth of the cast iron radiator + 10mm as a minimum.
For the approximate ‘outside valve to outside valve measurement’ (the minimum measurement to be able to operate the valves freely) you should add approx. 150mm/6.0” to the length indicated for each radiator in the Specification tab, however this measurement will vary depending on the valve that is fitted – this measurement should be used if fitting the radiator and valves into an area where there may be a width restriction.
*PLEASE REMEMBER THAT THE ABOVE MEASUREMENTS SHOULD BE USED AS A GUIDE ONLY.
Once you’ve made your selection, we will get to work assembling and painting your radiators. We’ll then carefully secure your package to ensure they arrive in perfect condition.
Our delivery partner will keep you informed on the status of your order. You will receive email and SMS updates confirming the date and estimated time of delivery.
Please note, all radiators are delivered on pallets to keep them secure. Delivery is to kerbside only, and you will be responsible for safely moving the radiators indoors. Read our radiator lifting guidelines before ordering.
If you have access restrictions at your delivery point, get in touch with our team before ordering to avoid any delays.
Collection is available by appointment only between the hours of 9am and 4pm, Monday to Friday. Contact us before ordering if you would like to collect.
